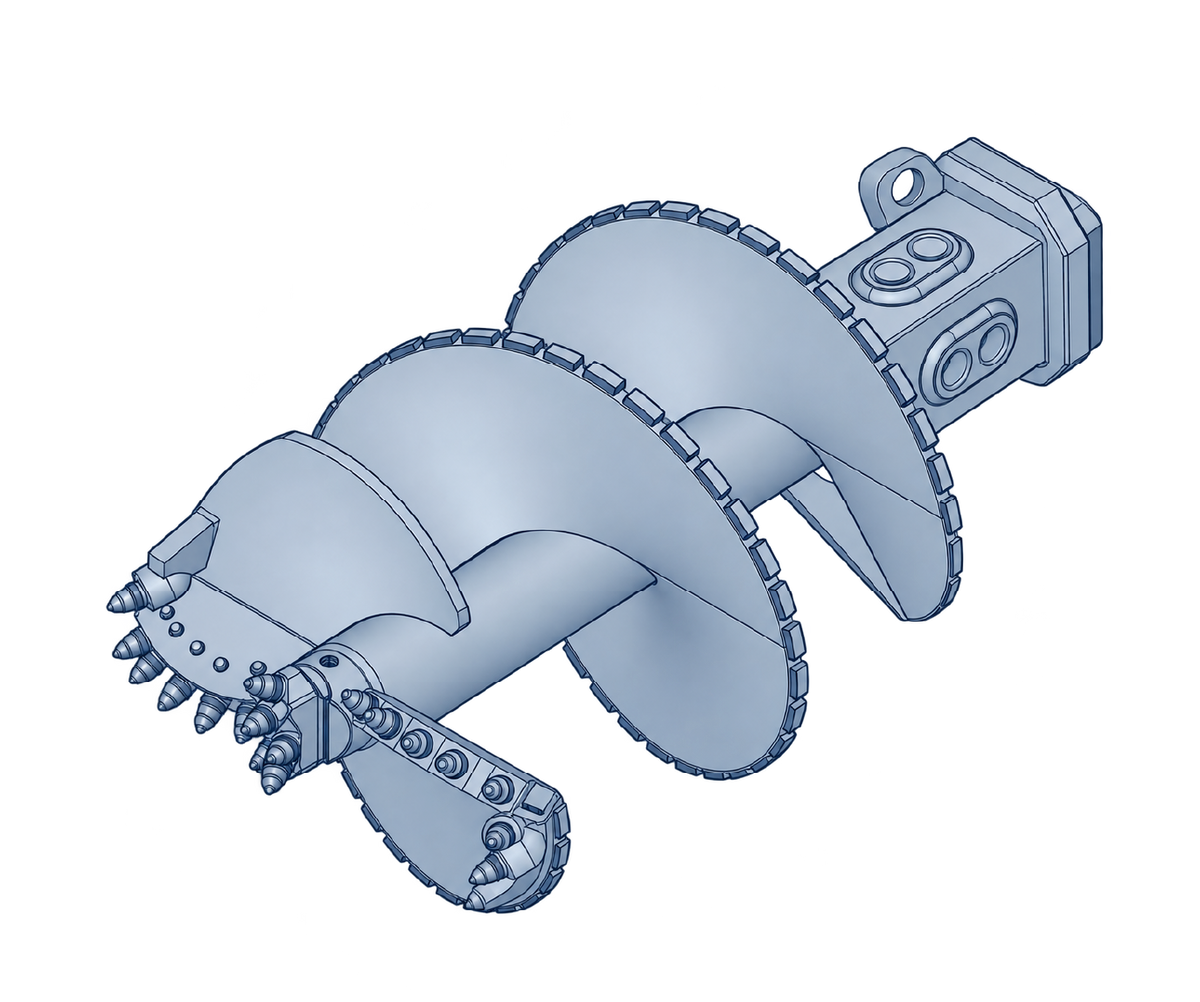

Designed for drilling in gravel, weak to moderately strong rock conditions. Double
start type fitted with abrasion resistant steel cutting edge, collar plates & optional pilot. The
tooling has been fitted with wear protection to increase tool life & fitted with the best wearparts available.
Technical Dimensions
| Casing Ø (mm) | Auger Ø (mm) | Pitch (mm) | Length (mm) | Weight (kg) |
|---|---|---|---|---|
| 880 | 780 | 400 | 2000 | 1045 |
| 1000 | 900 | 450 | 2000 | 1185 |
| 1180 | 1060 | 500 | 2000 | 1245 |
| 1300 | 1180 | 550 | 2000 | 1490 |
| 1650 | 1500 | 600 | 2000 | 1695 |
| 1800 | 1650 | 650 | 2000 | 1900 |
